Using Scopes

This tutorial describes the Scope interface provided by secbench to manage scopes.

In the most common setups, the acquisition flow will look like this:

Start by retrieving a scope instance from a Bench (see Bench and Device Discovery). In a normal script (or notebook), you would simply do:

from secbench.api import get_bench

bench = get_bench()
# instantiate a scope
scope = bench.get_scope()

For this tutorial, we will use the class SimulatedScope, which, as its name suggests, simulates a scope.

First we enable logging:

import logging

logging.basicConfig(level=logging.INFO)

Then we create the bench and load the SimulatedScope.

from secbench.api import get_bench
from secbench.api.enums import Arithmetic, Coupling, Decimation, Slope

from secbench.api.simulation import SimulatedScope

bench = get_bench()

INFO:secbench.api.bench:SECBENCH_USER_CONFIG not defined, no user configuration loaded

INFO:secbench.api.bench:SECBENCH_SCOPENET not defined, skipping registration of VxiScanner

INFO:secbench.api.bench:SECBENCH_PYVISA_BACKEND not defined, skipping registration of PyVisaScanner

# Force the Simulated scope to be used instead of a real scope.
scope = SimulatedScope(["1", "2", "3"])
bench.register(scope)

Now, if we request a scope, we should obtain our scope simulator.

scope = bench.get_scope()
print(scope)

<SimulatedScope `simulated scope`>

Device Configuration

Manual setup using the scope knobs & buttons

For side-channel experiments, we recommend tuning the scope parameters manually through knobs and buttons instead of configuring through the Python API, it will save you a ton of time. Once your setup is done, you can save it on the scope.

Unless you want to learn how to configure the scope using secbench API, you can skip Setup using secbench and jump directly to Trigger setup. Otherwise, sit tight.

Setup using device presets

If you are satisfied with your manual setup of the instrument, and the instrument supports saving the settings to a file, you can save such a preset using the scope interface and then load it from the Python API.

For example, say you have saved a preset called experience-1.dfl (don’t mind the extension, it is vendor-specific) in the scope’s default preset folder. You can then use setup_load() to load this file:

scope.setup_load('experience-1.dfl')

to load the settings before starting your acquisitions. You may also use an absolute path, eg. C:\Users\experience-1.dfl but don’t forget to use the r-string syntax to escape the \ characters of the Windows path:

scope.setup_load(r'C:\Users\experience-1.dfl')
#                ^ note the r

You can also save a preset on the device using setup_save():

scope.setup_save('experience-2.dfl')

Setup using secbench

When setting up the scope using the API, it is a good idea to first perform a device reset, so you get a clean state to work with:

# reset to factory defaults
scope.reset()

You can then enable one or multiple channels and configure their vertical parameters:

# list available channels
print(scope.channel_names())

['1', '2', '3']

To set channel “1” with a range of 2 V, offset of -1 mV, DC coupling:

scope["1"].setup(range=2, offset=-1e-3, coupling=Coupling.dc)

You may omit some parameters in secbench.api.instrument.ScopeAnalogChannel.setup(). Only passed parameters will be updated. For example to change the vertical range to 1V:

scope["1"].setup(range=1)
print(f"range =", scope["1"].range(), "Volts")

range = 1 Volts

Note

If you provide values that the scope is unable to honor (eg. unsupported range or offset), an InvalidChannelSetupError will be raised.

The default decimation method (ADC to data stream resampling) is a basic downsampling method. On supported hardware you can use other methods, such as peak detect, by passing an additional decimation parameter:

# peak detect decimation method
scope["1"].setup(range=2, coupling=Coupling.dc, decimation=Decimation.peak)

Then, the horizontal setup can be achieved using any combination of:

• acquisition duration

• number of samples

• duration per sample

For instance:

# 20M samples, during 1 second
scope.set_horizontal(samples=20e6, duration=1)

# 5k samples, with 1 sample = 1µs
scope.set_horizontal(samples=5e3, interval=1e-6)

# 1 sample = 1µs, during 5 seconds
scope.set_horizontal(interval=1e-6, duration=5)

Note

The scope may not exactly honor these values and instead use a value that is the nearest valid value it can handle. Use the attributes described below to be sure the scope does what you want.

If you provide values that the scope is unable to honor (eg. too many samples or unsupported resolution), an InvalidHorizontalSetupError will be raised.

You can retrieve the scope horizontal parameters:

print("horizontal_samples:", scope.horizontal_samples())
print("horizontal_duration:", scope.horizontal_duration(), "seconds")
print("horizontal_interval:", scope.horizontal_interval(), "seconds")

horizontal_samples: 5000000
horizontal_duration: 5 seconds
horizontal_interval: 1e-06 seconds

Warning

For some scope devices, it is important to respect the setup order described in this section, that is:

1. first, setup all channels

2. then, setup horizontal parameters (timebase).

This is because the horizontal resolution may depend on the number of active channels.

Trigger setup

Once the channels and horizontal parameters are setup, it is necessary to configure the scope trigger condition:

# trigger on channel 1, rising slope above 1.5 V
scope.set_trigger("1", slope=Slope.rising, level=1.5)

# trigger on channel 2, falling slope below -100 mV
scope.set_trigger("2", slope=Slope.falling, level=-100e-3)

You can use either the channel name or a channel reference for the first parameter. The two methods below are equivalent:

scope.set_trigger("1", Slope.rising, 1.5)

scope["1"].set_trigger(Slope.rising, 1.5)

Trigger out feature

On supported hardware, it is possible to enable a trigger out signal, that is a pulse of chosen width and delay after a trigger occurs:

# 1 ns pulse with a 1 µs delay
scope.enable_trigger_out(Slope.rising, length=1e-9, delay=1e-6)

Channel arithmetic

On hardware that supports it, it is possible to apply an arithmetic function on a channel that will be computed directly by the scope. The performances are usually better than computing these on the computer.

For example, computing an average waveform for channel 1 on 40 triggers can be accomplished using:

scope["1"].set_arithmetic(Arithmetic.average, reset=40)

This method is usually coupled with an acquisition count equal to the reset count, as explained in the next section.

Segmented Acquisition Flow

Acquisition campaigns often consist in gathering several hundreds of thousands of traces. To speed-up the trace gathering process, it is possible to acquire batches of traces. It is particularly useful when using an aggregation function such as an average. This approached is usually called “segmented acquisitions” or “batch acquisitions”.

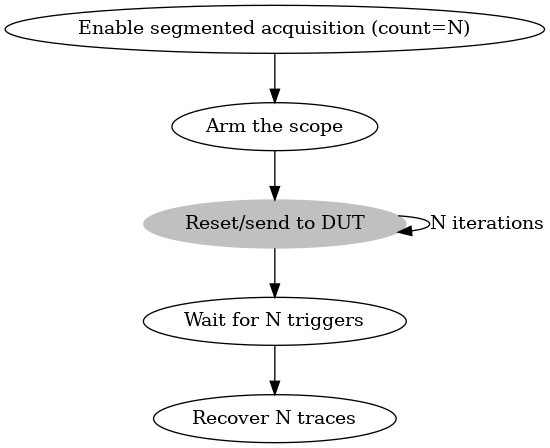

The flow will look like this:

Here is an example of how to acquire a batch with segmented acquisition:

# Setup a batch of 1000 traces
scope.set_horizontal(samples=100, interval=1e-9)
scope.segmented_acquisition(20)

scope.arm()
for i in range(20):
    # NOTE: this method is specific to SimulatedScope, just for demo purposes.
    # In practice, you should make your device under test trigger. Something like:
    # dut.do_some_crypto_op()
    scope.force_trigger()
scope.wait()
traces, = scope.get_data('1')

The traces array has shape:

print(traces.shape)

(20, 100)

The different functions used in this code snippet are explained hereafter.

Arming and waiting for trigger

Once the scope is completely setup (channels, horizontal parameters and trigger condition), it is possible to arm the acquisition. When the arm() method returns, it means the scope is ready to get triggered:

scope.disable_segmented_acquisition()
scope.arm()
# scope is now ready to trigger

Once arming is done, one has to wait for an actual trigger to happen. This is accomplished using the wait() method. It will block the program execution until the scope has been triggered:

# For the demo, we force a trigger on the scope.
scope.force_trigger()

scope.wait()
# scope has been triggered

In your side-channel acquisition, you have the ability to do any interaction with the DUT between these two calls. At the very least, the DUT should make the scope trigger on its configured trigger channel so that wait() can return. A typical scenario will look like this:

scope.arm()

# the line below should make the DUT send a trig signal
# my_dut.do_something('foobar')
scope.force_trigger()

scope.wait()

Do not forget to call arm() before triggering the scope, because you will miss triggers without it.

Do not use hard-coded sleep() calls, always use wait() before acquiring scope data.

Retrieving waveforms from the scope

Once the scope has triggered, the traces (waveforms) can be retrieved from the scope for further processing or storage. In this example the waveforms for channels 1 and 4 are retrieved:

traces = scope.get_data("1", "3")
# traces[0] is channel 1, traces[1] is channel 3

print(traces[0].shape, traces[1].shape)

(1, 100) (1, 100)

Or use Python’s unpacking syntax:

c1_data, c4_data = scope.get_data("1", "3")

Note

If you need the waveform of a single channel, don’t forget to add a trailing comma: trace, = scope.get_data('1')

The returned traces are flat NumPy arrays which size (number of points) is equal to horizontal_samples():

print("horizontal_samples:", scope.horizontal_samples())
print("c1_data.size", c1_data.size)

horizontal_samples: 100
c1_data.size 100

The values returned by get_data() are, by default, raw samples in the device internal format, typically 8 or 16 bit integers:

trace, = scope.get_data('1')
print(trace.dtype)

int8

If you need volt readings, use volts=True:

trace_in_volts, = scope.get_data('1', volts=True)
print(trace_in_volts.dtype)

Warning

Based on our experience, it is not a good practice to query data in volts. The conversion in volts forces a conversion of the dataset in float, which will increase your storage size by a factor 4 in the worst case.

A better approach is to:

• Save the raw ADC samples in a dataset, which is minimal in space usage.

• Save the channel configuration in the dataset.

• When reloading the dataset if you truely need volts, do the conversion in memory.
